Screw-Pump‌

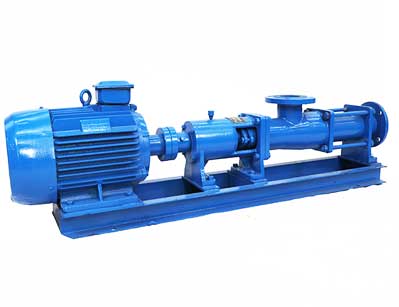

‌G-Series Screw Pump‌

Head: 60m-120m
Speed: 500-960r/min
Temperature: -15-200 ℃
Output Pressure: 0.6MPa-1.2MPa

G Series Screw Pump Introduction

G-Series Screw Pump‌ operates based on the ‌rotary meshing positive displacement principle‌. Its core components are an ‌eccentric screw (rotor)‌ and a fixed ‌liner (stator)‌. Due to their unique geometries, these parts form ‌independent sealed chambers‌, enabling:
Axial progressive media transport
Low internal flow velocity
Constant volumetric capacity
Stable pressure output
This prevents turbulence and agitation

Each pump stage delivers:
‌Pressure‌: 0.6 MPa
‌Head‌: 60m (for water)
‌Self-priming height‌: Typically 6m
‌Media temperature‌: ≤80°C (150°C for special requirements)

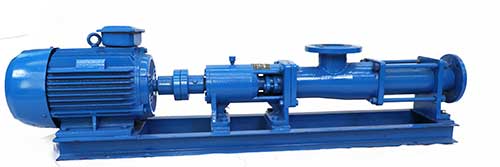

feed-pump-machine

G Series Screw Pump Features

Conveys gas-containing media under vacuum
Handles fibrous materials and solid particulates
Low vibration & pulsation-free operation
Superior self-priming and suction performance
Reversible flow direction
Transfers highly viscous water-containing media
