vibration motor

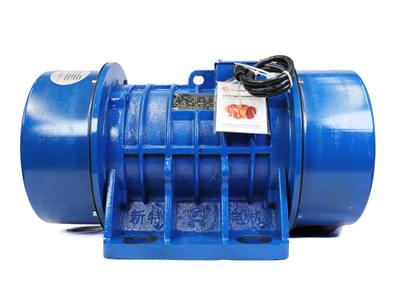

YZS Vibration Motor

Rated Voltage: 380V±10%
Rated frequency: 50 Hz
Protection Grade: IP44
Cooling Mode: IC410
Insulation Class: F
Working Mode: S1
Ambient Temperature: -15 ℃ to + 40 ℃
Air Humidity ≤ 85% (20 ℃ ± 5 ℃)

YZS vibration motor is the main vibration source of all kinds of vibration screening equipment. It is a general vibration motor. A group of adjustable eccentric blocks are installed at both ends of the rotor shaft. The exciting force is obtained by using the centrifugal force generated by the high-speed rotation of the shaft and eccentric block. The exciting force can be stepless adjusted by simple operation;

YZS vibration screening motor can be installed in different ways according to the needs of customers.
vibrator motor

YZS vibration motor can be used in general vibration machinery, such as crusher, vibrating screen, packer, sand shaker, molding machine, pile driver, elevator, filling machine, vibration arch breaking and anti blocking device of silo, etc.

YZS vibration motor adopts the integral casting of casing and base, which enhances the sealing performance of the whole machine. It can be widely used in the working environment of multi dust and multi granular materials without explosion-proof requirements.
