T12 Reducer
T Series Reducer
Speed Ratio Range: 1:1 1.5:1 2:1 2.5:1 3:14:1 5:1
Torque Range: 11.2-5713 Nm
Power Range: 0.014-335 kW

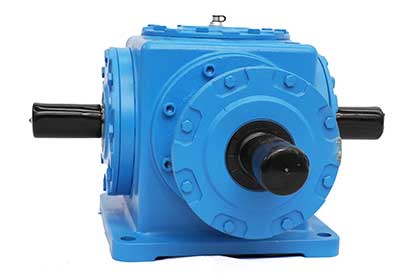

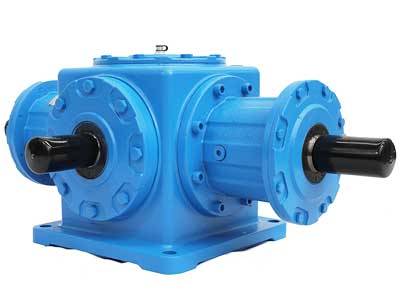

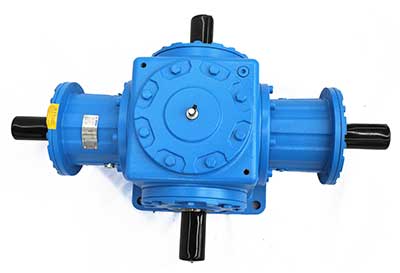

T12 reducer is a standardized speed reduction device utilizing spiral bevel gear transmission. Its transmission ratio range covers 1:1, 1.5:1, 2.5:1, 3:1, 4:1, 5:1, with an average efficiency reaching 98%. T12 reducer can be adapted to single-shaft, dual-horizontal-shaft, single-vertical-shaft, and dual-vertical-shaft configurations.
Technical Features
When the speed ratio is not 1:1, horizontal-shaft input with vertical-shaft output operates in reduction mode, while vertical-shaft input with horizontal-shaft output operates in increase mode.
Equipped with high-precision spiral bevel gears, it delivers high efficiency, smooth transmission, low noise, minimal vibration, and high load capacity.
Compatible with arbitrary mounting orientations.
Features a patent-pending modular design, enabling local assembly and production for faster manufacturing and logistics cycles.
